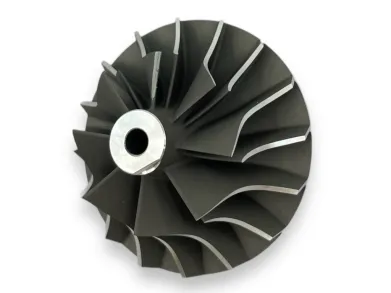

Compressor wheel GA-03-0136
GA-03-0136
Neu
10,34 €
zzgl. MwSt. Lieferung innerhalb von 3-8 Tagen
409179-0029, GA-03-0136, T4-01
Compressor wheel GA-03-0136 for turbos 409220-0002, 409220-0003, 409300-0024, 409300-0025, 409300-0026, 409300-0027, 409300-0028, 409300-0029, 409300-0030, 409300-0031.
See below for more info
GA-03-0136 (409179-0029) - Compressor wheel
Marke: TurboCentras
TurboCentras Artikel-Nr.: GA-03-0136
OEM Numbers: 409179-0029
GA-03-0136 - Alternative numbers
TCP (TurboCentras part number): GA-03-0136
TCO (TurboCentras old part number): T4-01
GA-03-0136 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Garrett | T04B21 | 409220-0002 | 409220-0002 | -- |
| Garrett | T04B21 | 409220-0003 | 409220-0003 | -- |
| Garrett | T04B27 | 409300-0024 | 409300-0024 | -- |
| Garrett | T04B27 | 409300-0025 | 409300-0025 | -- |
| Garrett | T04B27 | 409300-0026 | 409300-0026, 409300-5026S | A3520967799 |
| Garrett | T04B27 | 409300-0027 | 409300-0027 | -- |
| Garrett | T04B27 | 409300-0028 | 409300-0028 | -- |
| Garrett | T04B27 | 409300-0029 | 409300-0029 | -- |
| Garrett | T04B27 | 409300-0030 | 409300-0030 | -- |
| Garrett | T04B27 | 409300-0031 | 409300-0031, 409300-5031S | 3520964499, 3520964499KZ |
| Garrett | T04B59 | 465044-0037 | 465044-0037 | 6137-82-8600 |
| Garrett | T04B59 | 465044-0047 | 465044-0047 | 6137-82-8600 |
| Garrett | T04B59 | 465044-0061 | 465044-0061 | -- |
| Garrett | T04B59 | 465044-0062 | 465044-0062 | -- |
| Garrett | T04B59 | 465044-0161 | 465044-0161 | -- |
| Garrett | T04B59 | 465044-0261 | 465044-0261, 465044-5261S | 6137828200 |
| Garrett | T04B59 | 465044-0262 | 465044-0262 | 6137-82-8200 |
| Garrett | T04B71 | 465154-0004 | 465154-0004 | 2674359 |
| Garrett | T04B | 465154-0007 | 465154-0007, 465154-5007S | -- |
| Garrett | T04B71 | 465154-0008 | 465154-0008 | 2674367 |
| Garrett | T04B71 | 465154-0009 | 465154-0009 | 2674368 |
| Garrett | T04B71 | 465154-0010 | 465154-0010, 465154-5010S | 2674369 |
| Garrett | T04B71 | 465154-0011 | 465154-0011 | 2674370 |
| Garrett | T04B71 | 465154-0014 | 465154-0014 | 2674375 |
| Garrett | T04B71 | 465154-0015 | 465154-0015 | 2674385 |
| Garrett | T04B71 | 465154-0016 | 465154-0016 | 2674386 |
| Garrett | T04B71 | 465154-0018 | 465154-0018 | 2674387 |
| Garrett | T04B71 | 465154-0020 | 465154-0020 | 2674389 |
| Garrett | T04B71 | 465154-0021 | 465154-0021 | 2674391 |
| Garrett | T04B71 | 465154-0024 | 465154-0024 | 17085/001 |
| Garrett | T04B71 | 465154-0025 | 465154-0025 | 2674395 |
| Garrett | T04B71 | 465154-0027 | 465154-0027 | 75700068 |
| Garrett | T04B71 | 465154-0028 | 465154-0028 | 2674A116 |
| Garrett | T04B36 | 465240-0001 | 465240-0001 | -- |
| Garrett | T04B81 | 465366-0001 | 465366-0001, 465366-5001S | -- |
| Garrett | T04B81 | 465366-0002 | 465366-0002 | 3520966399 |
| Garrett | T04B81 | 465366-0003 | 465366-0003 | 3520965199 |
| Garrett | T04B81 | 465366-0004 | 465366-0004 | 3520965299 |
| Garrett | T04B81 | 465366-0005 | 465366-0005 | 3520965399 |
| Garrett | T04B81 | 465366-0006 | 465366-0006 | 3520966299 |
| Garrett | T04B81 | 465366-0007 | 465366-0007 | 3520966399 |
| Garrett | T04B81 | 465366-0008 | 465366-0008 | 3620966699 |
| Garrett | T04B81 | 465366-0009 | 465366-0009 | 3620966799 |
| Garrett | T04B81 | 465366-0010 | 465366-0010 | 3520966899 |
| Garrett | T04B81 | 465366-0011 | 465366-0011 | 3660960099 |
| Garrett | T04B81 | 465366-0012 | 465366-0012 | 3660960199 |
| Garrett | T04B81 | 465366-0013 | 465366-0013, 465366-5013S | 3660960299KZ |
| Garrett | T04B81 | 465366-0014 | 465366-0014 | 3620961299 |
| Garrett | T04B81 | 465366-0015 | 465366-0015 | 3660960399 |
| Garrett | T04B81 | 465366-0016 | 465366-0016 | 3660960499 |
| Garrett | T04B81 | 465366-0017 | 465366-0017 | 3660961199 |
| Garrett | T04B81 | 465366-0018 | 465366-0018, 465366-5018S | 3660960799KZ |
| Garrett | T04B81 | 465366-0019 | 465366-0019 | 3660960999 |
| Garrett | T04B81 | 465366-0020 | 465366-0020 | 3660961099 |
| Garrett | T04B81 | 465366-0021 | 465366-0021 | -- |
| Garrett | T04B81 | 465366-0022 | 465366-0022, 465366-5022S | 3660961399KZ |
| Garrett | T04B81 | 465366-0023 | 465366-0023 | 3760960099 |
| Garrett | T04B81 | 465366-0024 | 465366-0024 | 3760960399 |
| Garrett | TA3502 | 465478-0003 | 465478-0003 | -- |
| Garrett | T04B43 | 465550-0004 | 465550-0004 | 6.0529.20.0.0049 |
| Garrett | T04B44 | 465570-0001 | 465570-0001 | 466508 |
| Garrett | T04B44 | 465570-0002 | 465570-0002, 465570-5002S | 4880539-4 |
| Garrett | T04B44 | 465570-0003 | 465570-0003 | 4880568 |
| Garrett | T04B44 | 465570-0004 | 465570-0004 | 4880539-4 |
| Garrett | T04B51 | 465740-0004 | 465740-0004 | 4910901053 |
| Garrett | T0485 | 465740-0005 | 465740-0005, 465740-5005S | -- |
| Garrett | T04B51 | 465740-0006 | 465740-0006 | 2674366 |
| Garrett | T04B89 | 465772-0001 | 465772-0001 | 3140960199 |
| Garrett | T04B58 | 465960-0004 | 465960-0004 | 1260870820 |
| Garrett | T04B57 | 465970-0001 | 465970-0001 | TCJ1002 |
| Garrett | T04B57 | 465970-0002 | 465970-0002 | AAU1740 |
| Garrett | T04B57 | 465970-0003 | 465970-0003 | AAU3503 |
| Garrett | T04B57 | 465970-0005 | 465970-0005 | AAU6910 |
| Garrett | TB4125 | 466394-0001 | 466394-0001 | -- |
| Garrett | TB4125 | 466394-0002 | 466394-0002, 466394-5002S | -- |
GA-03-0136 - Part Properties
Blades (Compressor wheel blades count): 8/8
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 70.00
A1 (Size A1): 70.00
B (Size B): 45.70
C (Size C): 6.70
C1 (Size C1): 1.60
D (Size D): 32.10
E (Size E): 6.35
409179-0029, GA-03-0136, T4-01
