Product package: 1.8 kg (20x20x20 cm)

Rumpfgruppe GT22-213

Artikel-Nr. GT22-213

Zustand Neu

Nicht auf Lager

114,38 €

GA-00-0195, GT22-213

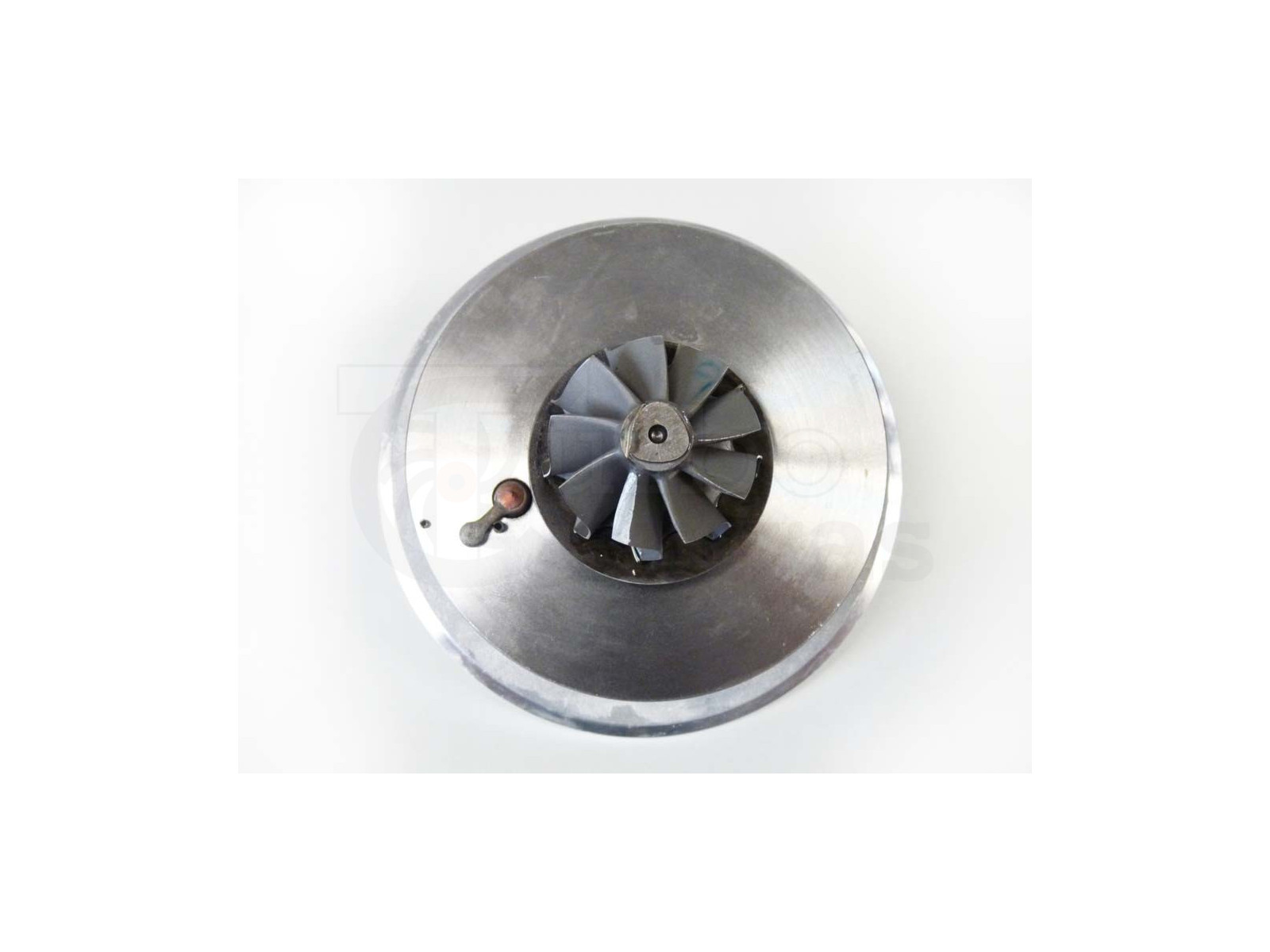

Rumpfgruppe GT22-213 for turbos 725364-0004, 725364-0006, 725364-0007, 725364-0012, 725364-0018, 725364-0021, 725364-0022, 728989-0001, 728989-0003, 728989-0007.

See below for more info

GT22-213

GT22-213

Marke: TurboCentras

Reference: GT22-213

Part numbers

TCP: GA-00-0195

TCO: GT22-213

Used in turbochargers

Garrett 725364-0004

Garrett 725364-0006

Garrett 725364-0007

Garrett 725364-0012

Garrett 725364-0018

Garrett 725364-0021

Garrett 725364-0022

Garrett 728989-0001

Garrett 728989-0003

Garrett 728989-0007

Included parts

Compressor wheel: GA-03-0081

Actuator clip: GR.5

Journal bearing: GT15-101

Thrust bearing: GT15-120

Thrust flinger: GT15-130

Thrust Collar: GT15-135

Retaining ring (B): GT15-143

Piston ring (turbine): GT15-160

Piston ring (compr.): GT15-170

Shaft nut: GT15-180

O-ring (compr.): GT15-205

Heat shield: GT15-323

Anti-rotation pin: GT15-330

Bearing housing: GT22-301

Back plate: GT22-62

Shaft and wheel: GT25-35

Schraube: M5X18

Gasket oil outlet: T-1

GT22-213 - Rumpfgruppe

Marke: TurboCentras

TurboCentras Reference: GT22-213

GT22-213 - Alternative numbers

TCN (TurboCentras part number): GA-00-0195

TCO (TurboCentras old part number): GT22-213

GT22-213 - Compatibility table

Rumpfgruppe GT22-213 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT2260V	725364-0004	725364-0004	11657789083
Garrett	GTA2260V	725364-0006	725364-0006, 725364-5006S	7789083E
Garrett	GTA2260V	725364-0007	725364-0007, 725364-5007S	11657789083, 7789081G
Garrett	GTA2260V	725364-0012	725364-0012, 725364-5012S	7789083H
Garrett	GTA2260V	725364-0018	725364-0018, 725364-5018S	7789083J
Garrett	GTA2260V	725364-0021	725364-0021, 725364-5021S	7789083L09
Garrett	GTA2260V	725364-0022	725364-0022, 725364-5022S, 725364-9022S	7789083L09
Garrett	GT2260V	728989-0001	728989-0001	11657790328, 11657794025
Garrett	GT2260V	728989-0003	728989-0003	7790328D
Garrett	GT2260V	728989-0007	728989-0007, 728989-5007S	11657790328, 11657794025, 7790326G

GA-00-0195, GT22-213

11657789083, 725364-0004, 725364-0006, 725364-5006S, 7789083E, 11657789083, 725364-0007, 725364-5007S, 7789081G, 725364-0012, 725364-5012S, 7789083H, 725364-0018, 725364-5018S, 7789083J, 725364-0021, 725364-5021S, 7789083L09, 725364-0022, 725364-5022S, 725364-9022S, 7789083L09, 11657790328, 11657794025, 728989-0001, 728989-0003, 7790328D, 11657790328, 11657794025, 728989-0007, 728989-5007S, 7790326G

Data updated: 2022-08-19 17:06:10
