Product package: 1.8 kg (20x20x20 cm)

Rumpfgruppe GT20-228

Artikel-Nr. GT20-228

Zustand Neu

Nicht auf Lager

108,00 €

703891-0024, GA-00-0175, GT20-228

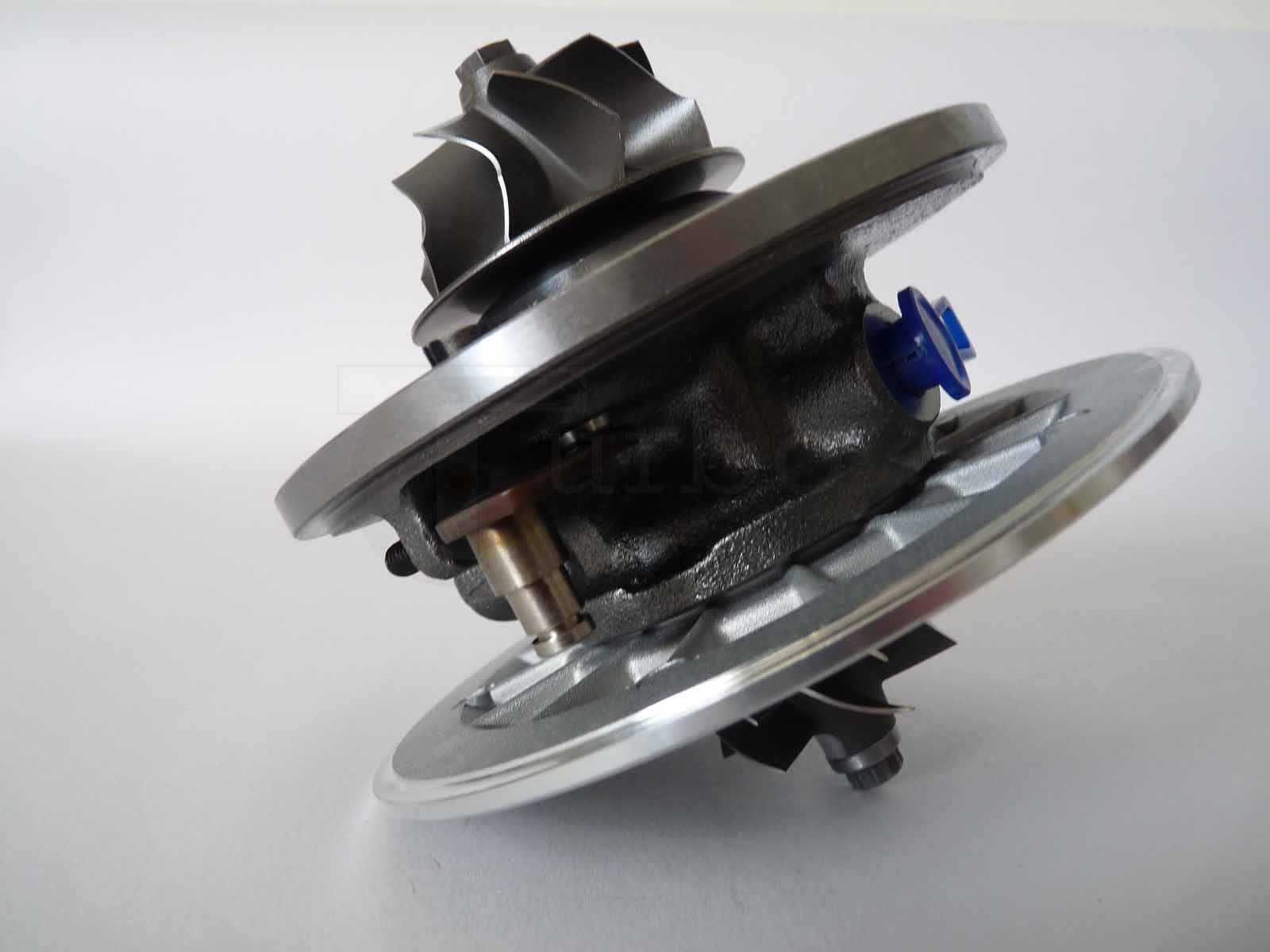

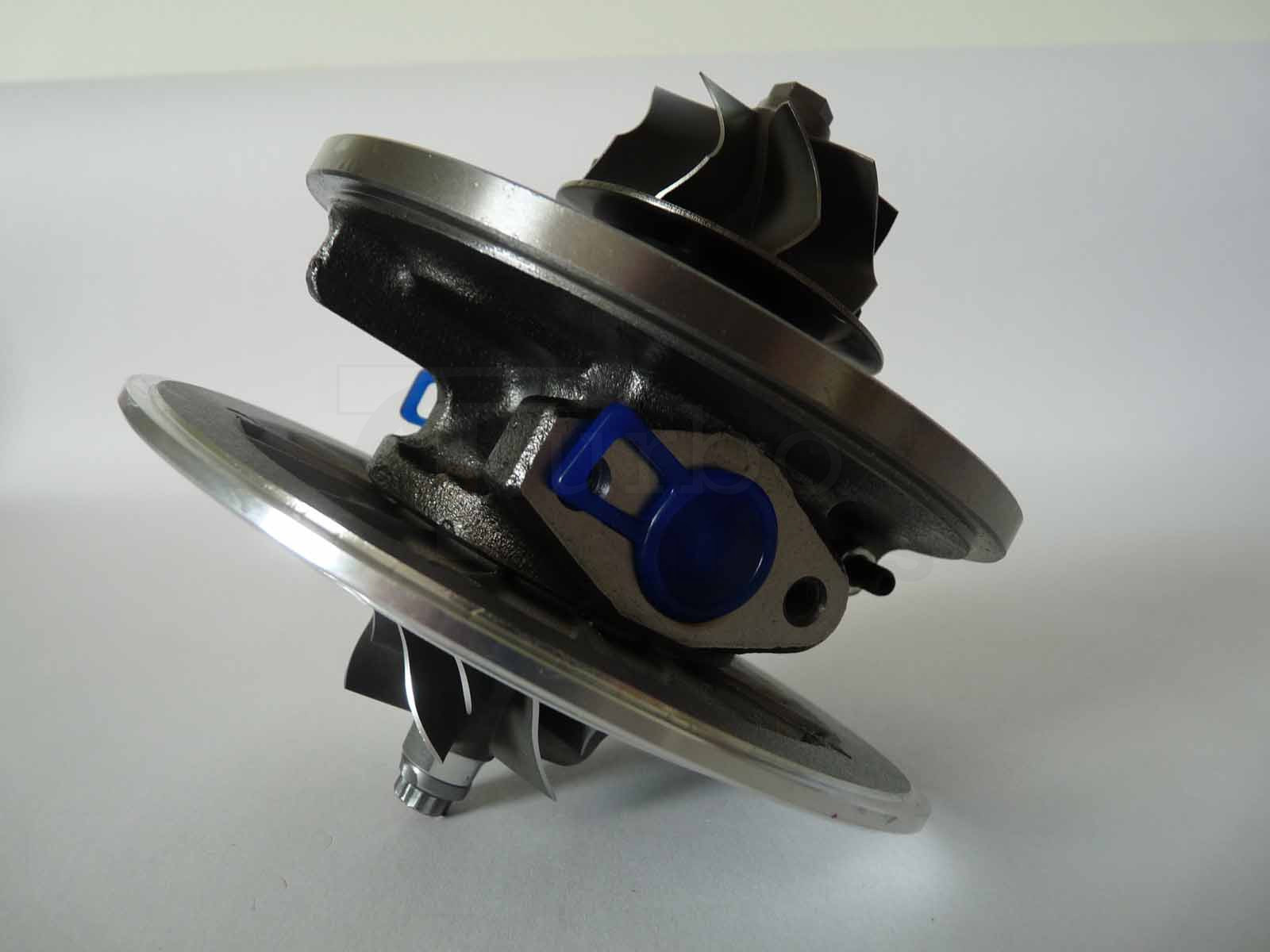

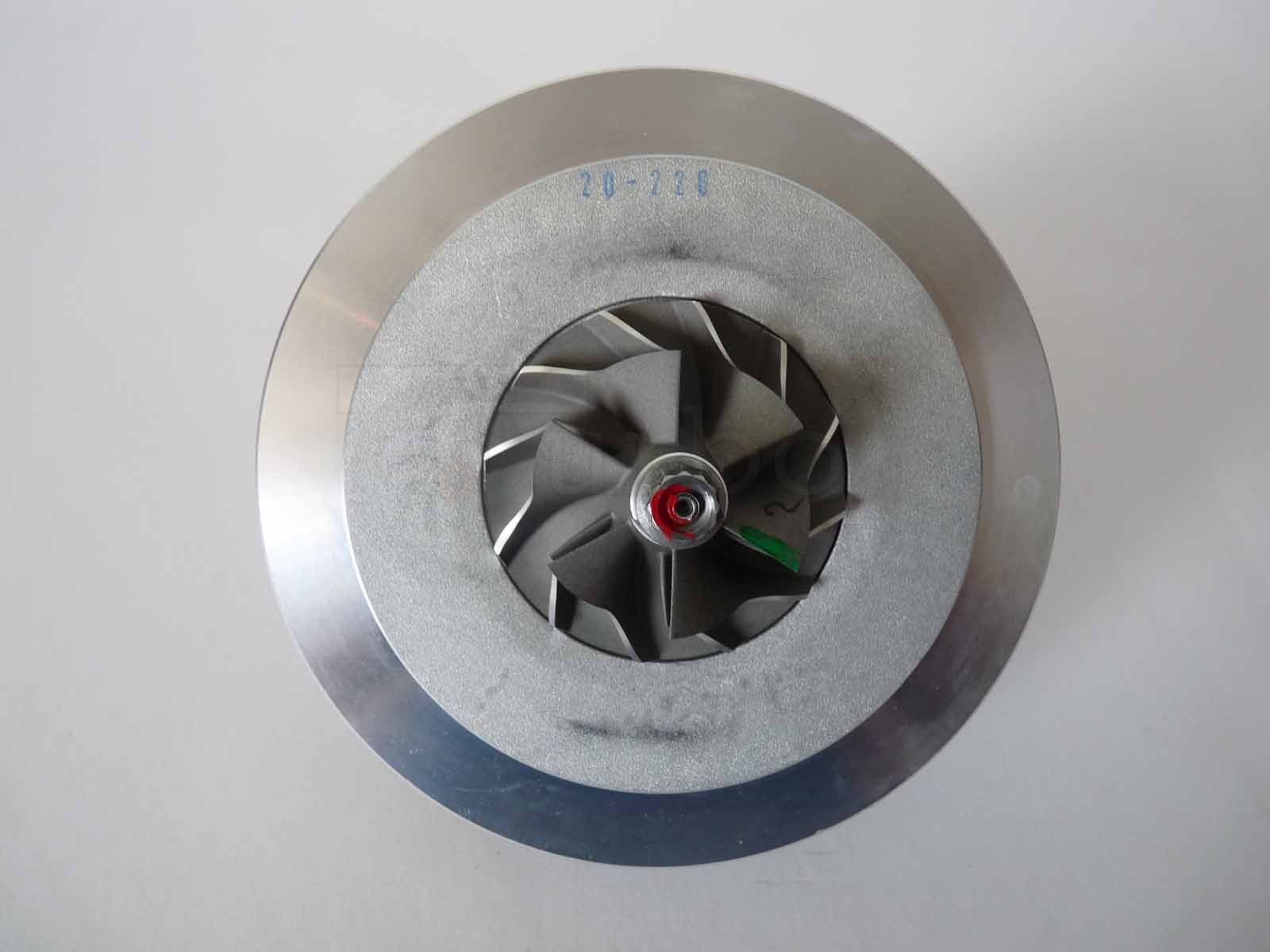

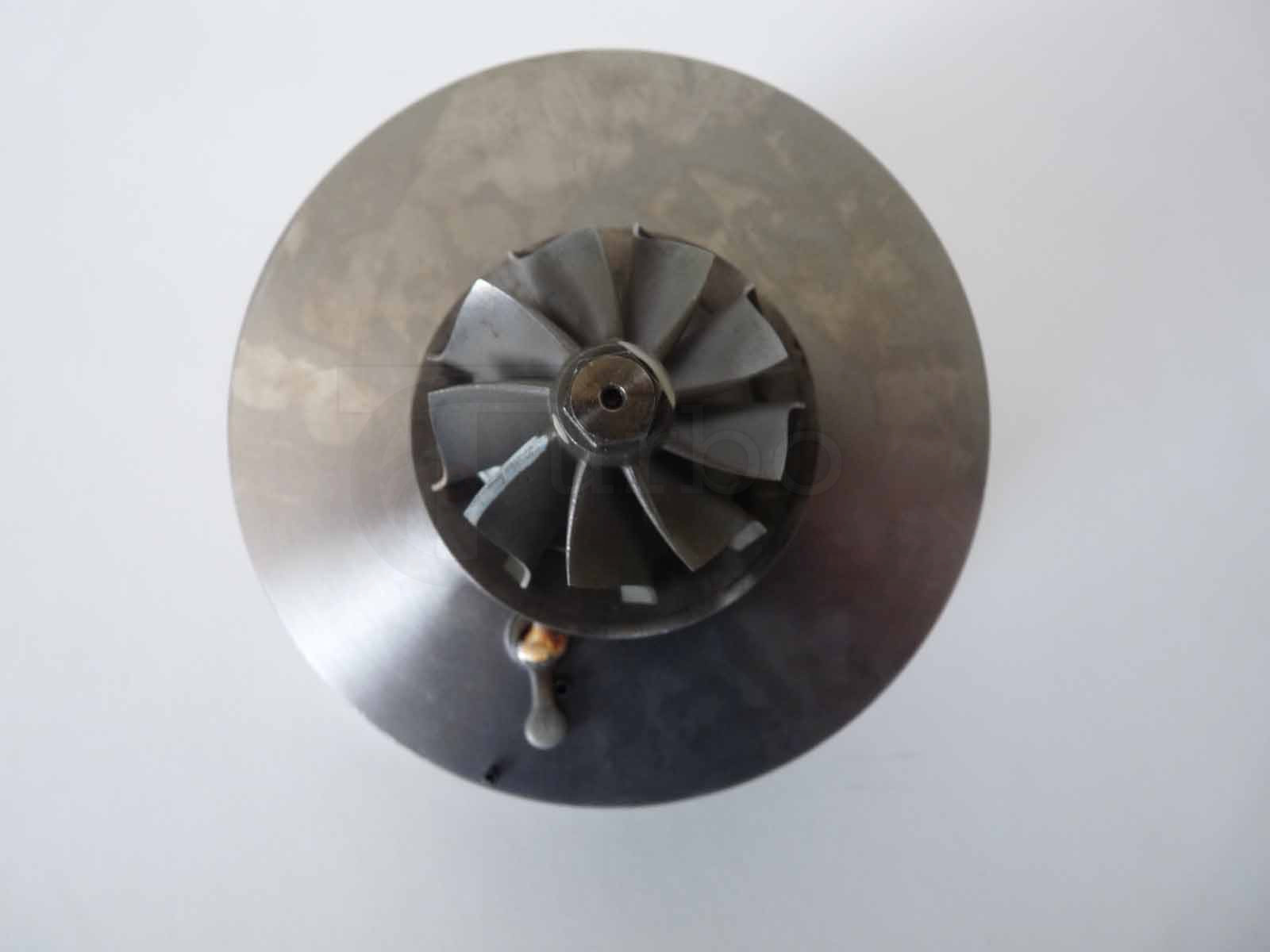

Rumpfgruppe GT20-228 for turbos 715910-0001, 715910-0002, 715910-0003.

See below for more info

GT20-228

Marke: TurboCentras

Artikel-Nr.: GT20-228

Part numbers

GHP: 703891-0024

TCP: GA-00-0175

TCO: GT20-228

Used in turbochargers

Garrett 715910-0001 GT22

Garrett 715910-0002 GT22

Garrett 715910-0003 GT22

Included parts

Shaft and wheel GA-02-0103

Compressor wheel GA-03-0084

Back plate GA-08-0050

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

Shaft nut GT15-180

O-ring GT15-203

O-ring GT15-206

Heat shield GT15-323

Anti-rotation pin GT15-330

Bearing housing GT22-300

Schraube SC-96-0007

Gasket oil outlet T-1

GT20-228 - Rumpfgruppe

Marke: TurboCentras

TurboCentras Reference: GT20-228

GT20-228 - Alternative numbers

GHP (Garrett original part number): 703891-0024

TCP (TurboCentras part number): GA-00-0175

TCO (TurboCentras old part number): GT20-228

GT20-228 - Compatibility table

Rumpfgruppe GT20-228 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GTA2256V	715910-0001	715910-0001, 715910-5001S	612096059980, A6120960599
Garrett	GTA2256V	715910-0002	715910-0002, 715910-5002S	612096059980, A6120960599
Garrett	GTA2256V	715910-0003	715910-0003, 715910-5003S, 715910-9003S	612096059980, A6120960599

703891-0024, GA-00-0175, GT20-228

612096059980, 715910-0001, 715910-5001S, A6120960599, 612096059980, 715910-0002, 715910-5002S, A6120960599, 612096059980, 715910-0003, 715910-5003S, 715910-9003S, A6120960599

Data updated: 2023-06-07 13:36:37
