Rumpfgruppe 435796-0020 435796-5020 GA-00-0031 GT15-214

Product package: 1.7 kg (20x20x20 cm)

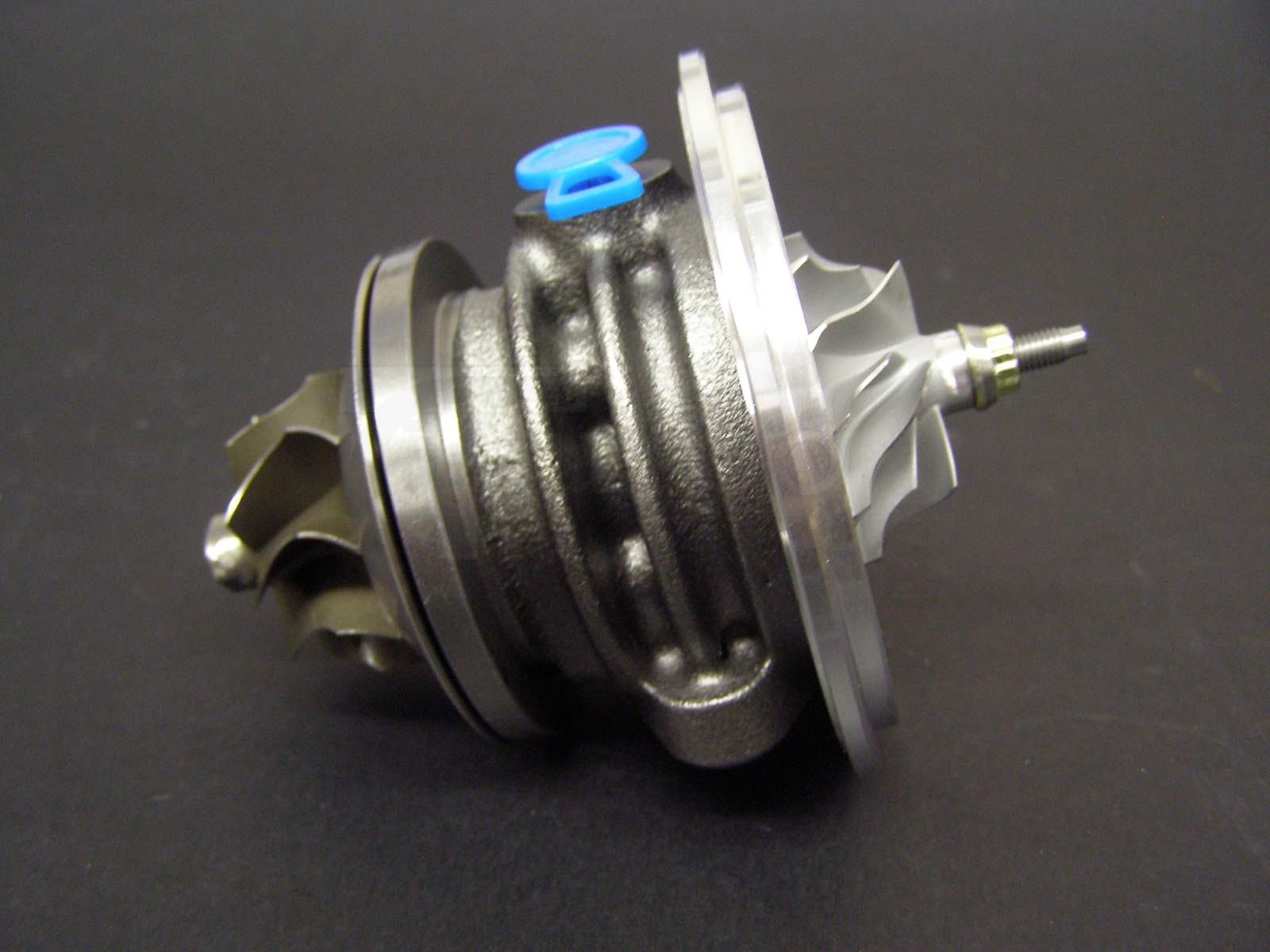

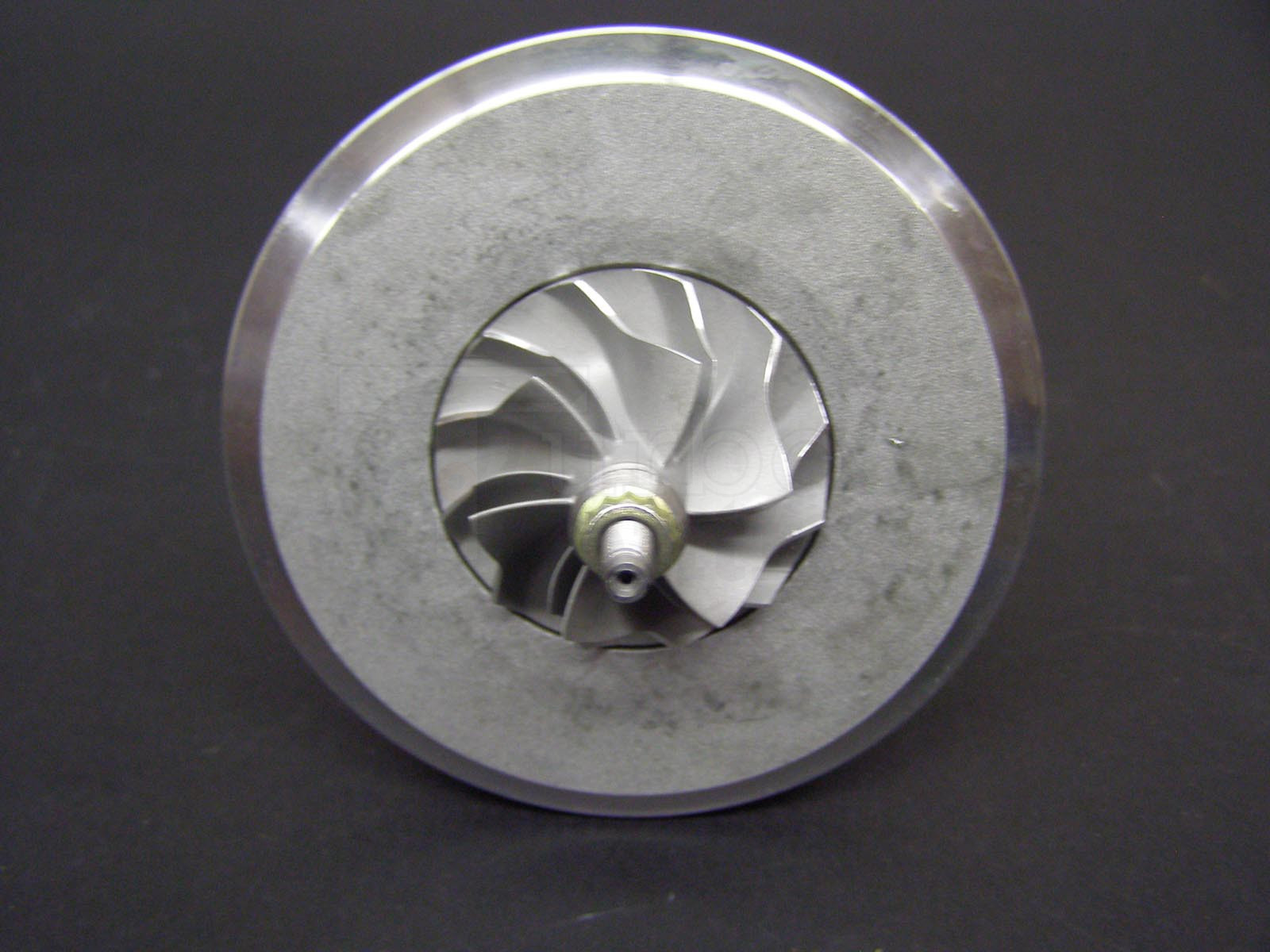

Rumpfgruppe GA-00-0031

Name: Rumpfgruppe GA-00-0031
Brand: TurboCentras
SKU: GA-00-0031
Price: 84.46 EUR
Availability: InStock

Artikel-Nr. GA-00-0031

Zustand Neu

Auf Lager (3 Artikel)

84,46 €

zzgl. MwSt. Lieferung innerhalb von 3-8 Tagen

435796-0020, 435796-5020, GA-00-0031, GT15-214

Rumpfgruppe GA-00-0031 for turbos 454064-0001, 454064-0002.

See below for more info

GA-00-0031

Marke: TurboCentras

Artikel-Nr.: GA-00-0031

Part numbers

GHP: 435796-0020

GHP: 435796-5020

TCP: GA-00-0031

TCO: GT15-214

Used in turbochargers

Garrett 454064-0001 GT15

Garrett 454064-0002 GT15

Included parts

Bearing housing GA-01-0050

Shaft and wheel GA-02-0043

Compressor wheel GA-03-0038

Heat shield GA-05-0014

Back plate GA-08-0009

Shaft nut GA-21-0005

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-132

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-173

O-ring GT15-201

O-ring GT15-206

Anti-rotation pin GT15-330

Schraube SC-96-0007

Gasket oil outlet T-1

GA-00-0031 - Rumpfgruppe

Marke: TurboCentras

TurboCentras Artikel-Nr.: GA-00-0031

GA-00-0031 - Alternative numbers

GHP (Garrett original part number): 435796-0020

GHP (Garrett original part number): 435796-5020

TCP (TurboCentras part number): GA-00-0031

TCO (TurboCentras old part number): GT15-214

GA-00-0031 - Compatibility table

Rumpfgruppe GA-00-0031 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT1544S	454064-0001	454064-0001	028145701L
Garrett	GT1544S	454064-0002	454064-0002	028145701L

435796-0020, 435796-5020, GA-00-0031, GT15-214

028145701L, 454064-0001, 028145701L, 454064-0002

Data updated: 2023-10-10 08:44:15
