Product package: 1.7 kg (20x20x20 cm)

Rumpfgruppe GA-00-0109

Artikel-Nr. GA-00-0109

Zustand Neu

Nur noch wenige Teile verfügbar (1 Artikel)

95,44 €

zzgl. MwSt. Lieferung innerhalb von 3-8 Tagen

GA-00-0109, GT17-225

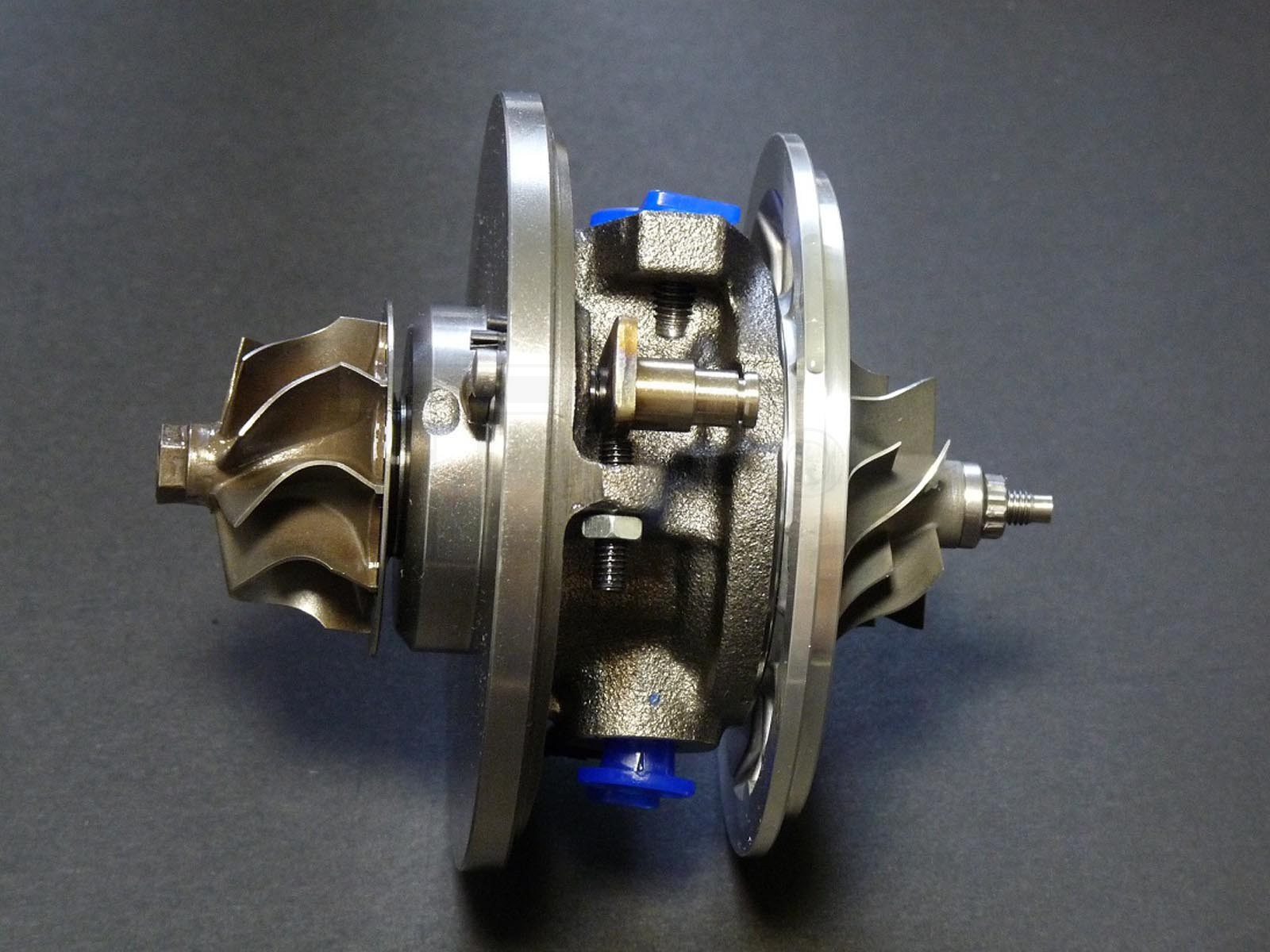

Rumpfgruppe GA-00-0109 for turbos 758219-0002, 758219-0003, 758219-0004, 761437-0003, 761437-0005, 761437-0006.

See below for more info

GT17-225

GA-00-0109

Marke: TurboCentras

Artikel-Nr.: GA-00-0109

Part numbers

TCP: GA-00-0109

TCO: GT17-225

Used in turbochargers

Garrett 758219-0002 GT17

Garrett 758219-0003 GT17

Garrett 758219-0004 GT17

Garrett 761437-0003 GT17

Garrett 761437-0005 GT17

Garrett 761437-0006 GT17

Included parts

Bearing housing GA-01-0002

Compressor wheel GA-03-0029

Heat shield GA-05-0013

Back plate GA-08-0005

Shaft nut GA-21-0005

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

O-ring GT15-202

O-ring GT15-206

Anti-rotation pin GT15-330

Schraube SC-96-0007

Gasket oil outlet T-1

GA-00-0109 - Rumpfgruppe

Marke: TurboCentras

TurboCentras Artikel-Nr.: GA-00-0109

GA-00-0109 - Alternative numbers

TCP (TurboCentras part number): GA-00-0109

TCO (TurboCentras old part number): GT17-225

GA-00-0109 - Compatibility table

Rumpfgruppe GA-00-0109 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT1749V	758219-0002	758219-0002, 758219-5002S	03G145702F
Garrett	GT1749V	758219-0003	758219-0003, 758219-5003S	03G145702F, 03G145702K
Garrett	GT1749V	758219-0004	758219-0004, 758219-5004S	03G145702F, 03G145702K
Garrett	GT1749V	761437-0003	761437-0003, 761437-5003S	038145702H
Garrett	GT1749V	761437-0005	761437-0005, 761437-5005S	035145702K
Garrett	GT1749V	761437-0006	761437-0006, 761437-5006S	--

GA-00-0109, GT17-225
