Product package: 1.6 kg (20x20x20 cm)

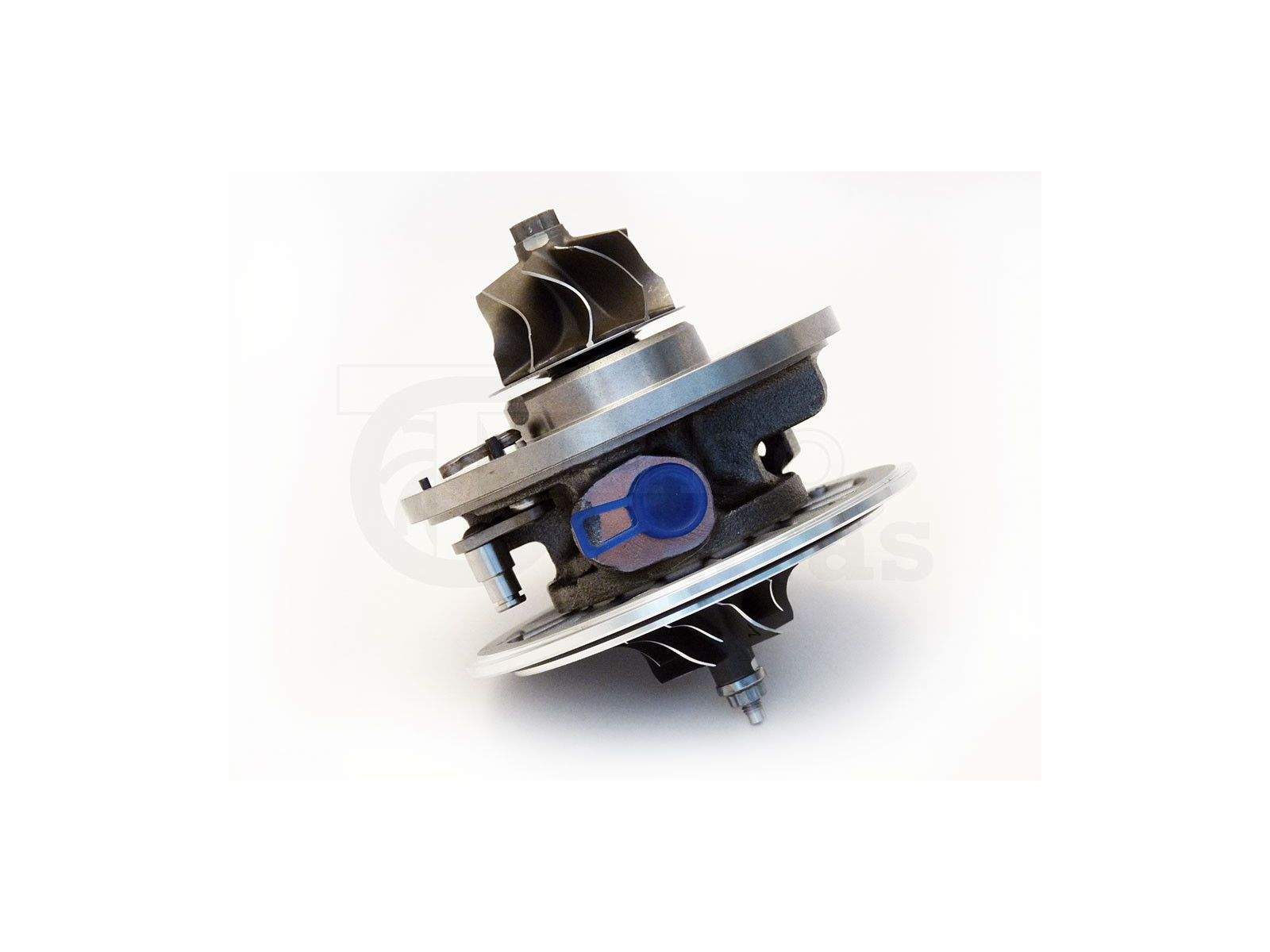

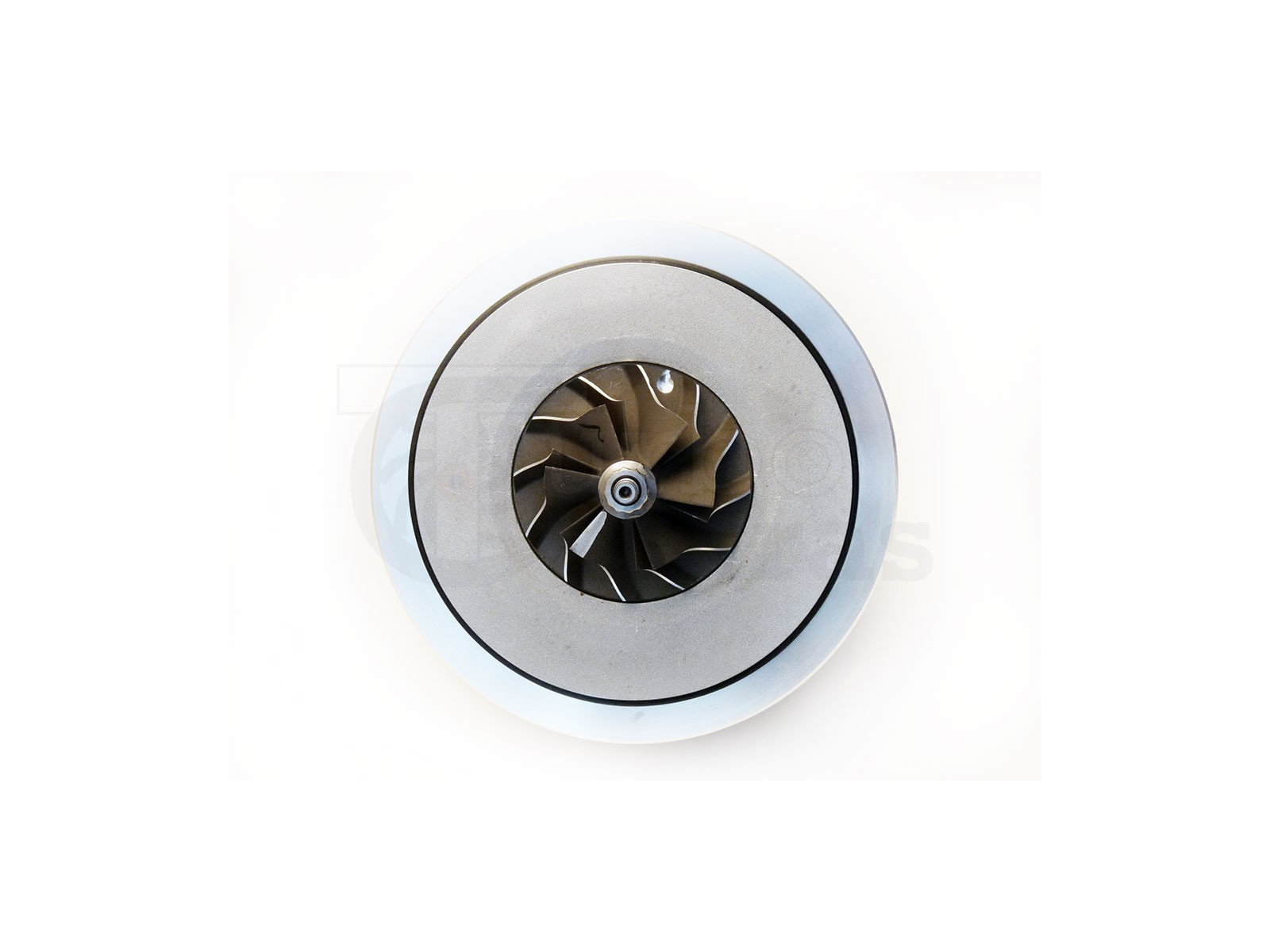

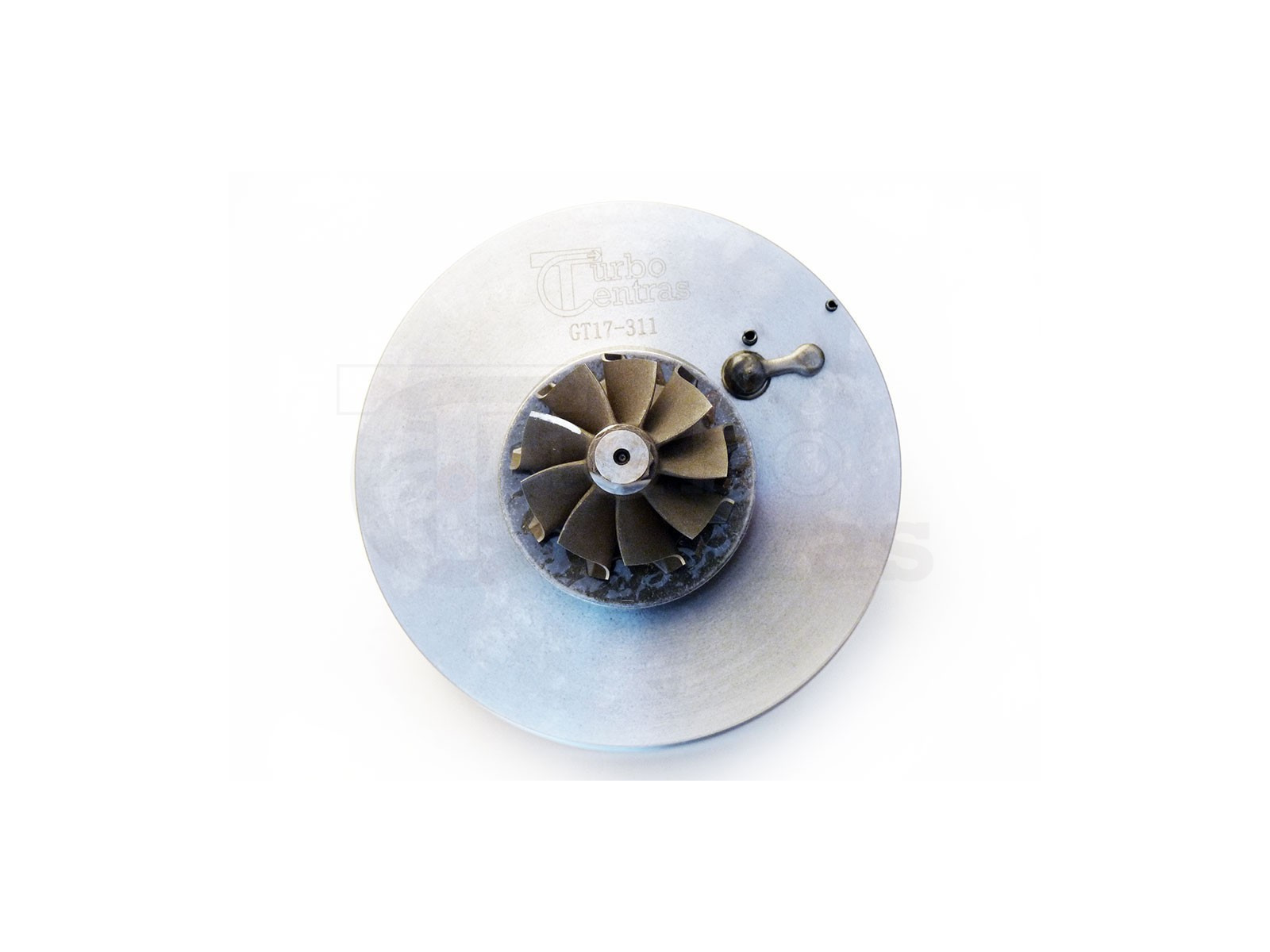

Rumpfgruppe GA-00-0125

Artikel-Nr. GA-00-0125

Zustand Neu

Auf Lager (3 Artikel)

98,42 €

zzgl. MwSt. Lieferung innerhalb von 3-8 Tagen

GA-00-0125, GT17-241

Rumpfgruppe GA-00-0125 for turbos 761899-0001, 761899-0002, 761899-0003, 767836-0001, 773271-0001, 773721-0001.

See below for more info

GT17-241

GA-00-0125

Marke: TurboCentras

Artikel-Nr.: GA-00-0125

Part numbers

TCP: GA-00-0125

TCO: GT17-241

Used in turbochargers

Garrett 761899-0001 GT17

Garrett 761899-0002 GT17

Garrett 761899-0003 GT17

Garrett 767836-0001 GT17

Garrett 773271-0001 GT17

Garrett 773721-0001 GT17

Included parts

Bearing housing GA-01-0100

Shaft and wheel GA-02-0006

Compressor wheel GA-03-0057

Heat shield GA-05-0013

Back plate GA-08-0034

Shaft nut GA-21-0005

Actuator clip GR.5

Journal bearing GT15-101

Thrust bearing GT15-120

Thrust flinger GT15-130

Thrust Collar GT15-135

Retaining ring GT15-143

Piston ring GT15-160

Piston ring GT15-170

O-ring GT15-202

O-ring GT15-206

Anti-rotation pin GT15-330

Schraube SC-96-0007

Gasket oil outlet T-1

GA-00-0125 - Rumpfgruppe

Marke: TurboCentras

TurboCentras Artikel-Nr.: GA-00-0125

GA-00-0125 - Alternative numbers

TCP (TurboCentras part number): GA-00-0125

TCO (TurboCentras old part number): GT17-241

GA-00-0125 - Compatibility table

Rumpfgruppe GA-00-0125 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
Garrett	GT1749V	761899-0001	761899-0001	--
Garrett	GT1749V	761899-0002	761899-0002	--
Garrett	GT1749V	761899-0003	761899-0003	--
Garrett	GT1749V	767836-0001	767836-0001	--
Garrett	GT1749V	773271-0001	773271-0001	--
Garrett	GT1749V	773721-0001	773721-0001, 773721-5001S, 773721-9001W	55211064

GA-00-0125, GT17-241

761899-0001, 761899-0002, 761899-0003, 767836-0001, 773271-0001, 55211064, 773721-0001, 773721-5001S, 773721-9001W

Data updated: 2023-10-10 08:45:01

Auf Lager 3 Artikel

Zustand Neu

Thrust flinger GT15-130
